eBOX510-820-FL1.6G-RC-EU

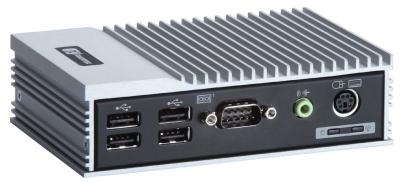

The eBOX510-820-FL, an extremely small fanless embedded computer with an overall height of only 37.5mm (95.4mm in depth and 132mm in width), is based on an ultra low-power IntelŸ Atom™ Z530 processor up to 1.6GHz or Z510 processor up to 1.1GHz with up to 2GB of dual-channel DDR2 system memory. Powered by the IntelŸ System Controller Hub US15W with integrated IntelŸ GMA 500, the eBOX510-820-FL offers advanced graphics and 3D performance. Its power consumption is less than 10W in common used, making the eBOX510-820-FL an optimal solution for power-sensitive embedded applications. This fanless box computer built with low-cost and power-effective in mind is a tiny application-ready system for DSA, car PC, medical healthcare, entry-level gaming, and in-flight infotainment.

Features:

IntelŸ Atom™ processor Z510 (1.1 GHz) or Z530 (1.6 GHz) onboard IntelŸ US15W core logic chipset Ultra slim and power-efficient design Supports 4 USB 2.0 ports and 1 COM port Supports one 10/100/1000Mbps Ethernet port Supports one CompactFlash™

Product specification
Standard Color	Silver-Black
Construction	Aluminum extrusion and heary-duty steel, IP40
CPU	Intel- Atom processor Z510 (1.1 GHz) or Z530 (1.6 GHz)
System Memory	1 x 200-pin DDR2 SO-DIMM max. up to 2 GB
Chipset	Intel- US15W core logic
BIOS	Phoenix-Award
System I/O Outlet	1 x RS-232 (COM 1) 1 x VGA 1 x Audio (Line-out) 1 x PS/2 keyboard/mouse 1 x 10/100/1000Mbps Ethernet 4 x USB 2.0 1 x Vdc 5V power input connector
Watchdog Timer	255 levels, 1 ~ 255 sec.
Storage	Supports 1 x CompactFlash
Expansion Interface	N/A
System Indicator	1 x green LED for system power-on 1 x orange LED for HDD active
Power Supply	Input: AC 100 ~ 240V, AC 25W adapter with lock Output: DC 5V @ 5A
Operating Temperature	0C ~ +50TC (32T ~ 122F) (with W.T. CF)
Storage Temperature	-20C ~ +80C (-4T ~ +176T)
Humidity	10% ~ 90%, no-condensing
Dimensions	132 mm (5.19") (W) x 95.4 mm (3.75") (D) x 37.5 mm (1.47") (H)
Weight (net/gross)	0.48 kg (1.06 lb)/0.5 kg (1.1 lb)
Certification	CE
EOS Support	XPE, WinCE, Linux

Product features:
Computer, PLC
Manufacturer	Axiomtek
Compatible OS	Linux Windows
Processor type	Intel Intel Atom
Interfaces	USB Ethernet PS/2
Graphics interfaces	VGA
Storage	CompactFlash
Device features	Programmable
Device type	BOX Computer
Serial ports	RS-232
Processor speed	More than 1,5GHz
Network interfaces	10/100 TX 1Gb TX
Other	Fanless Box computer
Device features	Embedded
Switch features	Non-fiber
Converter type	Programmable converter
USB ports	USB x2 USB x3 USB x4 and more
