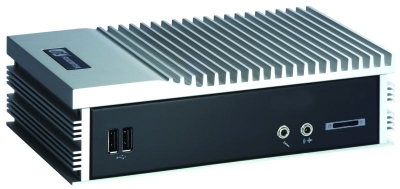

eBOX620-831-FL1.6G-CAN-RC-EU

Axiomtek's eBOX620-831-FL fanless compact-type embedded computer supports a low power IntelŸ Atom™ N270 1.6GHz processor with a 533MHz FSB and the highly-integrated IntelŸ 945GSE Express chipset offering excellent computing performance at remarkably low power consumption. Without a fan and enclosed in an extremely rugged aluminum housing only 200 x 120 x 56 (mm) in size, the eBOX620-831-FL can be installed in the space-limited environment. Certification with CE Class-B marking, the eBOX620-831-FL's fanless design and unique thermal solution support it to operate noiseless and reliable in critical environments at temperature from -10C to 50C. The super compact embedded box computer is targeted at industrial automation, digital signage, and gaming industry because of its low power consumption and graphic capability.
Supports CAN protocol.

Features:

IntelŸ Atom™ processor N270 1.6 GHz onboard IntelŸ 945GSE + ICH7M chipset Fanless operation design with full feature I/O High performance DDR2 SODIMM max. up to 2 GB One 2.5" SATA drive bay Supports CAN bus

Product specification
Standard Color	Silver-Black
Construction	Aluminum extrusion and heavy-duty steel
CPU	Intel- Atom processor N270 1.6 GHz
System Memory	1 x 200-pin DDR2 SO-DIMM max. up to 2 GB
Chipset	Intel- 945GSE + ICH7M
BIOS	AMI 8Mbit with RPL/PXE LAN boot ROM

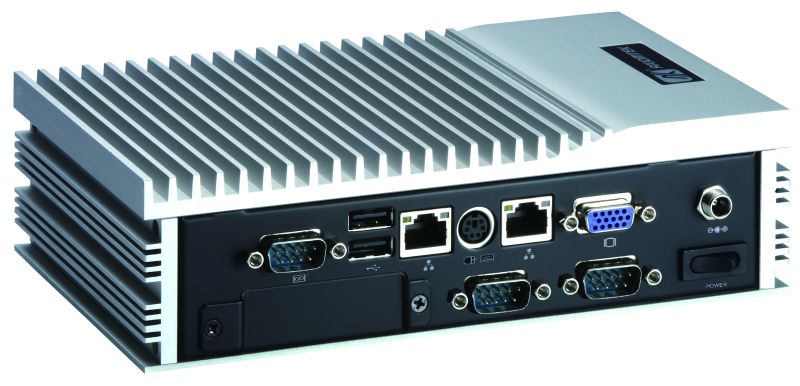

System I/O Outlet	3x RS-232 (COM 1/2/3) 1 x VGA 1 x Audio (Mic-in/Line-out) 1 x PS/2 keyboard/mouse 2 x 10/100/1000Mbps Ethernet 4 x USB 2.0 1 x VDC power input connector 1 x ATX power switch
Watchdog Timer	255 levels, 1 ~ 255 sec.
Storage	1 x 2.5" SATA HDD drive bay 1 x CompactFlash
Expansion Interface	N/A
System Indicator	1 x green LED for system power-on 1 x orange LED for HDD active
Power Supply	9 ~34Vdc- in 42.5W
Operating Temperature	-10 C ~ +50 C (14 F ~ 122 F) (with 1.6 GHz CPU, W.T. HDD)
Storage Temperature	-20C ~ +80C (-4F ~ +176F)
Humidity	10% ~ 90%, non-condensing
Vibration Endurance	2 Grms with CF (5 - 500 Hz, X,Y,Z directions)
Dimensions	200 mm (7.87") (W) x 120 mm (4.72") (D) x 56 mm (2.2") (H)
Weight (net/gross)	1.8 kg (3.97 lb)/2.6 kg (5.73 lb)
Certification	CE
EOS Support	XPE, WinCE, Linux

Product features:
Industrial computers
Computer, PLC
Manufacturer	Axiomtek
Compatible OS	Linux Windows
Processor type	Intel Intel Atom
Interfaces	USB Ethernet CAN PS/2
Graphics interfaces	VGA
Storage	CompactFlash 2.5" HDD HDD SATA
Other	Audio Fanless Box computer
Device features	Programmable
Device type	BOX Computer
Serial ports	RS-232 RS-232 x2 RS-232 x3
Processor speed	More than 1,5GHz
Network interfaces	10/100 TX 1Gb TX
Device features	Embedded
Switch features	Non-fiber
Mount type	DIN rail mounting
Converter type	Programmable converter
USB ports	USB x2 USB x3 USB x4 and more
