Availability:  product is availablePrice: Inquiries:

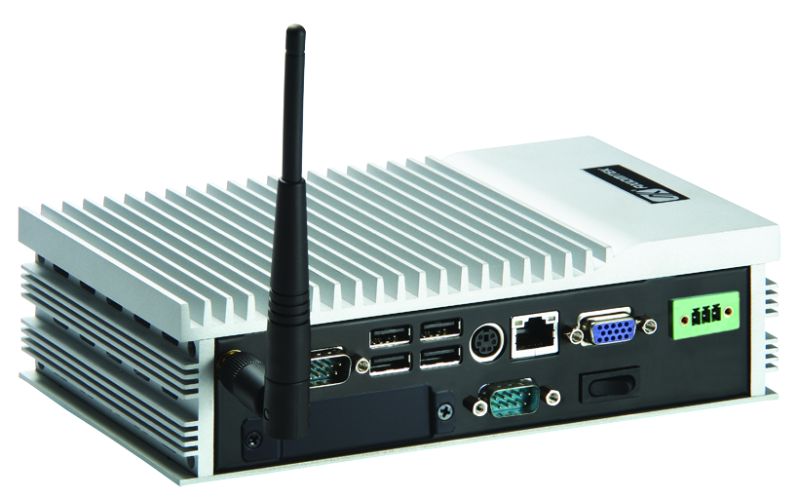

eBOX620-823-FL1.33G-RC-DCEmbedded computer, Intel Atom Z520PT 1.33GHz, DDR2 SODIMM do 2GB, 2x RS-232, 1x VGA, audio, 1x PS/2, 1x 1000base-tx, 4x USB, 1x SMA, 1x 2.5" SATA HDD, CF, wt, din rail, fanless
Axiomtek
Axiomtek's wide-temperature eBOX620-823-FL embedded computer system supports an industrial temperature range of -20C to +65C. The fanless eBOX620-823-FL utilizes the industrial-temperature grade IntelŸ Atom™ processor Z510PT (1.1 GHz) or Z520PT (1.3 GHz) and the IntelŸ System Controller Hub US15WPT. One 200-pin DIMM socket supports up to 2GB DDR2 400/533 DRAM for high memory bandwidth. The onboard IntelŸ System Controller Hub US15WPT features the IntelŸ GMA500 graphics engine which utilizes up to 256 MB frame buffer. Certification with CE Class-B marking, the eBOX620-823-FL built with low-cost and power-effective in mind is targeted at outdoor embedded system, industrial control, medical and gaming machine.
