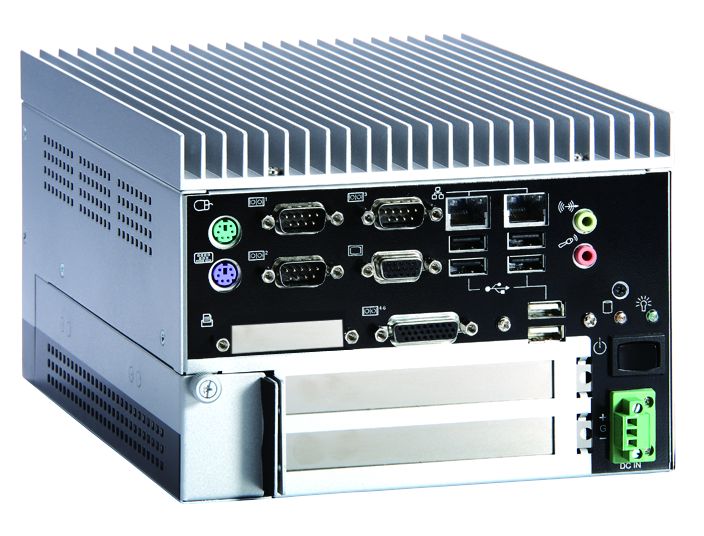

eBOX639-836-FL 1.6G DC

Axiomtek's eBOX639-836-FL fanless embedded box computer system, which supports new Intel Atom™ N270 1.6GHz processor with a 533 MHz FSB and the highly-integrated Intel 945GSE Express chipset offering excellent computing performance at remarkably low power consumption. One 240-pin DIMM socket supports up to 2 GB DDR2 400/533 DRAM for high memory bandwidth. With Intel GMA 950, the eBOX639-836-FL features outstanding 3D performance with a maximum video memory of up to 224MB by sharing the system memory. In addition, this fanless yet cost-effective embedded box computer offers two PCI slots to deliver mass expansibility. The eBOX639-836-FL is a cost-effective application-ready platform targeted at industrial automation, digital signage (DSA), industrial controller, and vehicle applications.

Features:

Supports Intel Atom™ processor N270 1.6 GHz Intel 945GSE + ICH7M chipset Fanless operation design with full feature I/O Supports two 32 bit/33 MHz PCI slots High performance DDR2 DIMM max. up to 2 GB One 2.5" SATA drive bay ATX 107W 16V ~ 28V DC-in power supply, optional with AC-to-DC adapter

Product specification
Standard Color	Silver
Construction	Aluminum extrusion and heavy-duty steel, IP30
CPU	Intel- Atom processor N270 1.6 GHz
System Memory	1 x 240-pin DDR2 DIMM max. up to 2 GB
Chipset	Intel- 945GSE + ICH7M
BIOS	AMI 8Mbit with RPL/PXE LAN boot ROM
System I/O Outlet	1 x RS-232/422/485 (COM 1) 5 x RS-232 (COM 2~6, COM 4~6 through 26-pin high density connector) 1 x VGA 1 x Audio (Mic-in/Line-out) 2 x PS/2 2 x 10/100/1000Mbps Ethernet 6 x USB 2.01 xVdcpower input connector (DC version) 1 x screw lock adapter connector (AC version)
Watchdog Timer	255 levels, 1 ~ 255 sec.
Storage	1 x 2.5" SATA HDD drive bay 1 x CompactFlash
Expansion Interface	2 x 32 bit/33 MHz PCI slot, support max. length of 200 mm of PCB boards expansion
System Indicator	1 x green LED for system power-on 1 x orange LED for HDD active
Power Supply	DC ATX 107 W Input: 16 ~28Vdc (Vdc) Output: +3.3Vd:@ 6A,+5Vd:@ 9A,+12Vd:@ 3A, -12V @ 0.1A, +5Vsb@ 1A
Operating Temperature	-10 C ~ +55 C (14 F ~ 131 F with 1.6 GHz CPU, W.T. HDD, DC 19V)
Storage Temperature	-20 C ~ +80 C (-4 F ~ +176 F)
Humidity	10% ~ 90%, non-condensing
Vibration Endurance	1 Grms with HDD (5 - 500 Hz, X, Y, Z directions)
Dimensions	182 mm (7.17") (W) x 230 mm (9.06") (D) x 130.8 mm (5.15") (H)
Weight (net/gross)	4.1 kg (9.04 lb)/4.8 kg (10.58 lb)
Certification	CE
EOS Support	XPE, WinCE, Linux

Product features:
Computer, PLC
Manufacturer	Axiomtek
Compatible OS	Linux Windows
Processor type	Intel Intel Atom
Interfaces	USB Ethernet PS/2
Graphics interfaces	VGA
Storage	CompactFlash HDD SATA
Other	Audio Fanless Wide temperature Box computer
Device features	Programmable
Device type	BOX Computer
Serial ports	RS-232 RS-422 RS-485 RS-232 x3 RS-232 x4 and more
Processor speed	More than 1,5GHz
Network interfaces	10/100 TX 1Gb TX
Device features	Embedded
Switch features	Non-fiber
Converter type	Programmable converter
USB ports	USB x2 USB x3 USB x4 and more
