CAN-2088D

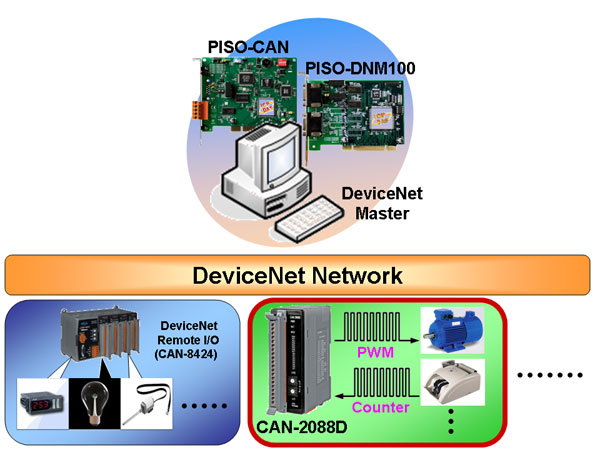

PWM (Pulse width modulation) is a powerful technique for controlling analog circuits. It uses digital outputs to generate a waveform with variant duty cycle and frequency to control analog circuits. CAN-2088D is a PWM slave module of DeviceNet protocol. It has 8 PWM output channels and 8 high speed counter channels. It can be used to develop powerful and cost effective analog control system.

Product specification
DeviceNet Interface
DeviceNet Specification	Volume I, Release 2.0 and Volume II, Release 2.0, Errata5
DeviceNet subscribe	Group 2 Only Server
Connection supported	1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O
Baud Rate Setting by Rotary Switch	125 kbps, 250 kbps, 500 kbps
Node ID Setting by Rotary Switch	0 ~ 63
Heartbeat message	Yes
Shutdown message	Yes
Terminator Resistor	Switch for 120 terminator resistor
Connector	5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+)
EDS file	Yes
LED	PWR/NET/MOD
PWM
Channels	8 (Source)
Frequency	0.2 ~ 500 kHz (non-continuous)
Scaling Resolution	16-bit (1 ~ 128 s for each step)
Duty Cycle	0.1 ~ 99.9 %
PWM Mode	Burst mode, Continuous mode
Burst mode counter	1~65535 counts
Trigger Mode	Hardware (Start and Stop) or Software (Start and Stop)
Intra-module Isolation	3750 Vrms
ESD Protection	4 kV Contact for each channel
Digital Input
Channels	8 (Sink/Source)
ON Voltage Level	+5.5 ~ +30 V
OFF Voltage Level	less than 3.5 V
Counter Frequency	500 kHz max.
Max. Counts	32-bits (4,294,967,295)
Input Impedance	4.7 k, 1/4 W
Intra-module Isolation	3750 Vrms
ESD Protection	4 kV Contact for each channel
LED
DeviceNet Status	3 LEDs for PWR/NET/MOD
Terminal Resister	1 LED as Terminal Resister indicators
PWM LED	8 LEDs as PWM Output indicators
DI LED	8 LEDs as Digital Input indicators
Power
Power Supply	Unregulated +10 ~ +30 VDC
Power Consumption	2 W
Mechanism
Installation	DIN-Rail
Dimensions	32.3 mm x 99 mm x 77.5 mm ( W x L x H )
Environment
Operating Temp.	-25 ~ +75 C
Storage Temp.	-30 ~ +80 C
Humidity	10 ~ 90% RH, non-condensing

Product features:
Industrial module
Converters
ZigBee type
Manufacturer	ICPDAS
Interfaces	CAN
