DB-16P

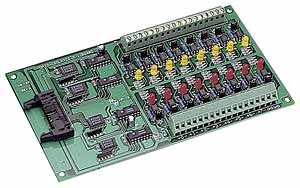

The DB-16P is a 16 channel isolated digital input daughter board forA-82X board or any 812pg,711 726 , 720 series board, and PCI-Bus Multi-function board.

The optically isolated inputs of the DB-16P consists of a bi-directional OPTO-coupler with a resistor for current sensing. You can use the DB-16P to sense DC signal from TTL levels up to 24V. You can also use DB-16P to sense a wide range of AC signals. You can use the board to isolated the computer from large common-mode voltages, ground loops and voltage spikes that often occur in industrial environments.

Product specification
Construction
Construction	Daughter Board,Panel Mounting
Interface
Interface	TTL Signal
Digital Input
Digital Inputs	Total 16 Isolated 16
Isolation	1000 V
Input Voltage	Logic Level 0: 0...1 V Logic Level 1: 2.8...24 V
Input Current	Logic Level 1: 20 mA
Maximum Input Frequency	1 kHz
LEDs and Switches
LED Indicators	LEDs
Additional Functions
Additional Functions	Input RC-filter with Time Constant of 2,2 ms
Cables and Connectors
Connectors	1xIDC-20,Screw Terminal
Standard Purchase	CA-2010
Power
Current	+5V 224 mA
Operation
Temperature	0...+50 C
Humidity	5...90 %
Storage
Temperature	-20...+70 C
Humidity	5...90 %
Dimensions and Weight
Length	205 mm
Depth	114 mm
Weight	0.213 kg

Product features:
Industrial computers
Embedded module
Manufacturer	ICPDAS
Module type	I/O module
I/O	Digital in Isolated input
Embedded module type	Extension board
