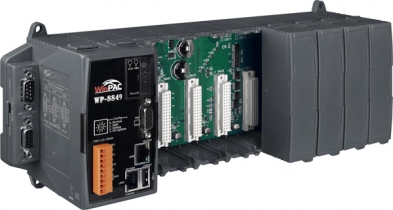

WP-8849

WinPAC-8x49 Series (WP-8149/8449/8849) is the new generation WinCE based InduSoft PAC (Programmable Automation Controller) of ICP DAS. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 Operating System, variant connectivity (10/100 Base-TX dual Ethernet Ports, 2 or 4 RS-232/485 ports, 1 VGA, 1 USB port) and 1/4/8 slots for high performance Parallel-type I/O modules (High Profile I-8K series) and Serial-type I/O modules (Hot-Swap High Profile I-87K I/O modules). Memories come with 128 MB SRAM, 512 KB dual battery backup SRAM, 96 MB FLASH & 16 GB microSD. For redundant supporting: dual Watchdog Timers, redundant power inputs, dual battery backup SRAM, dual Ethernet Ports. WinPAC-8x47 Series will upgrade your system!

Hot Features:

InduSoft Web Studio General Features IWS applications run on microcomputers connected in real-time to machines or processors through WinPAC programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system.

• InduSoft Integrated with WinPAC-8000
  • Easy steps to accomplish your system.
  • Communication drivers are provided by ICP DAS.
  • Monitor and control system from both sites (WinPAC) and control room (PC)

• Communication Protocol
  • DCON Protocol for ICP DAS embedded controllers or I/O modules is provided.
  • Supports more than 200 Communication drivers such as Siemens, Omron and so forth.
  • InduSoft supports Modbus / OPC / DDE / TCP/IP / SNMP Client and Server.

• Access Database
  • Easily Supports third-party SQL relational databases such as SQL Server, MS Access, Excel, Oracle ...etc.
  • Database connectivety from any platform supported by IWS or CEView, through the unique Studio Database Gateway.
  • Supports Secondary Database in the modes "Redundancy" or "Store and Forward" to increase the reliability of the system and avoid loss of data.

• SNMP Protocol

  • Supported I/O Status of WinPAC can be gathered via Internet by polling or inform actively(trap) mode to remote SNMP manager station.
  • WinPAC controller can be treated as a SNMP gateway to transfer the information including I/O and user-defined data to SNMP manager station.
  • Integrating I/O and Network information in SNMP manager station.

• Web Thin Clients
  • Use a regular WEB Browser (Internet Explorer) to host the application.
  • Requests online and history data from the Server where InduSoft Web Studio is running, becoming a CLIENT for the data.
  • Provide Multi-level security for applications, including the Internet and Intranet.

• Useful Package Tool is Provided

ICP DAS has released a package tool for InduSoft. The package tool is integrated with several ActiveX objects and communication tools, including "GSM_ActiveX", "SHM_ActiveX", "COM_ActiveX" and "COM Port Communication Tool"...etc.

• By using ActiveX objects provided by ICP DAS in InduSoft, user can easily develop multi-function application.
• Reduce the number of used drivers.
• To integrate with GSM/GPRS external modem easily.

• Provide an easy way to exchange data between InduSoft and other Programs.
