PANEL1158-831

The PANEL1158-831 is a 15" multi-media panel PC for Kiosk application. It has a fashionable mechanism design and industrial-grade plastic front bezel which can avoid damage from chemical corrosion. To meet the demand of multimedia application, the PANEL1158-831 supports IntelŸ Core™2 Duo processor and operating system of WindowsŸ Vista, and is equipped with built-in speakers, two Giga LAN, 1394a and WLAN module for wireless network connection. This slim industrial panel PC is most suitable for Kiosk, factory automation and more.

Product specification
Front Bezel	Industrial-grade material with IP65/NEMA 4 rugged protection
LCD Panel
Display Type	15" XGA TFT
Brightness (cd/m)	250 nits
Resolution	1024 x 768 pixels
Viewing Angle (H/V)	140° /120°
Main system
CPU	Socket M for Intel Core 2 Duo/ Core Duo/ Core Solo processor with FSB 533/667 MHz
Chipset	Intel 945GME + ICH7M/-DH
System Memory	2x 240-pin DDR2 DIMM max. up to 4 GB
BIOS	Phoenix-Award 4 Mbit with RPL/PXE LAN Boot ROM, SmartView and customer CMOS backup
Storage	1x 3.5" or 2 x 2.5" IDE/SATA HDD
Drive	1x built-in slim CD-ROM
Watchdog Timer	255 levels, 1 -255 sec.

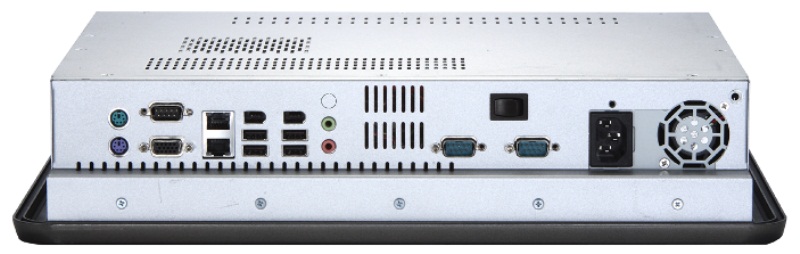

I/O Connector	2x RS-232 (COM 2/3) 1x RS-232/422/485 (COM 1) 2x IEEE 1394a 4 x USB 2.0 2x PS/2 keyboard/mouse 2x 10/100/1000Mbps Ethernet 1x VGA 1x Audio (Mic-in/Line-out)
Touchscreen	Resistive type Light Transmission 79% 1 million activations (typical) at a single point
Power supply	100 ~ 240Vac, 180W
Dimensions	420 mm (16.54") (W) x 86.4 mm (3.40") (D) x 335 mm (13.2") (H)
Packing Dimensions	610 mm (24.02") (W) x 260 mm (10.24") (D) x 590 mm (23.23") (H)
Weight (net/gross)	5.5 kg (12.1 lb)/9.3 kg (22.5 lb)
Environment	Operating temperature: 0°~ +45°C (32°~ 113°F) Relative humidity: 10 ~ 95% @ 40° C, non-condensing Operation vibration: 1.0G, 5~500Hz, random
Certification	CE

Product features:
LCD, PanelPC
Manufacturer	Axiomtek
Screen size	15"
Compatible OS	Linux Windows
Processor type	Intel Intel Core 2 Duo
Interfaces	USB Ethernet PS/2
Graphics interfaces	VGA
Other	Audio
Panel type	Panel PC
Panel type	Touchable
Serial ports	RS-232 RS-422 RS-485 RS-232 x2
Network interfaces	10/100 TX 1Gb TX
Screen size	15"
Switch features	Non-fiber
Panel type	Touchable
USB ports	USB x2 USB x3 USB x4 and more
