Availability:  product is availablePrice: Inquiries: Bonus:

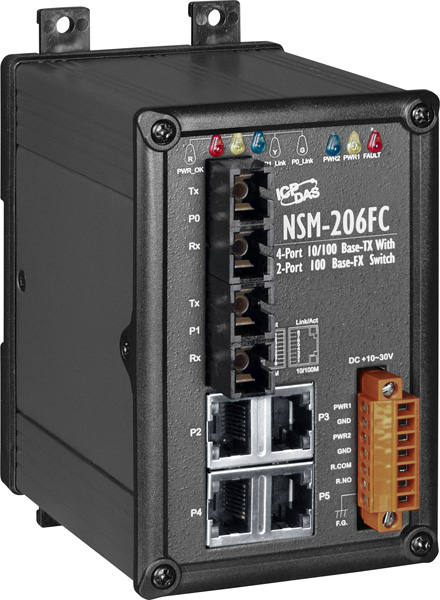

NSM-206FCUnmanaged 4-Port Industrial 10/100 Base-T(X) with Dual 100 Base-FX Switch, multi mode
ICPDAS
The NSM-206FC (SC Connector; Multi-mode) is a Unmanaged 4-Port Industrial 10/100
Base-T(X) with Dual 100 Base-FX Switch that secures data transmission by using fiber
optic transmission to provide immunity from EMI/RFI interference. It is used Ethernet
for transmitting a signal up to 2 Km(6,600 ft), and is the perfect solution for
applications where transmission must be protected from electrical exposure, surges,
lightning or chemical corrosion. The NSM-206FC operates at either half or full duplex
mode. In full duplex mode, range is 2km with 62.5/ 125μm fiber cables; in half duplex
mode, range is 412m with 62.5/ 125μm fiber cables.
The NSM-206FC can extend your LAN in a daisy chain configuration. Please refer to manual. NSM-206FC provides two power inputs that can be connected simultaneously to live DC power sources. If one of the power inputs fails, the other live source acts as a backup to automatically support the NSM-206FC's power needs.
