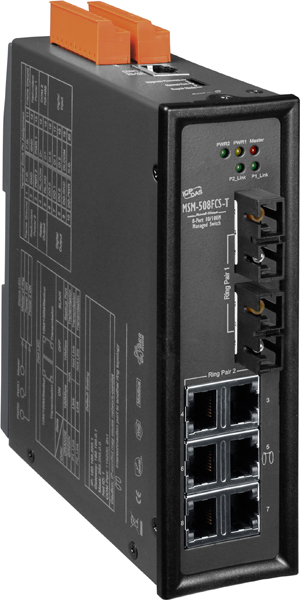

MSM-508FCS

The MSM-508FCS is an 8-Port Industrial Ethernet Layer 2 Managed Switch with 2-Port Fiber (SC Connector; Multi-mode) that secures data transmission by using fiber optics transmission to provide immunity from EMI/RFI interference. It is used Ethernet for transmitting a signal up to 2 Km(6,600 ft), and is the perfect solution for applications where transmission must be protected from electrical exposure, surges, lightning or chemical corrosion.

It can be managed through RS-232 port via serial console or Ethernet port using telnet or Web browser. In addition, the switch supports a lot of powerful managed functions, such as 802.1Q Tag-based VLAN, Port-based VLAN, 802.1p QoS (Quality of Service), Port Trunking, Spanning Tree, Cable Testing and Port Mirroring. Built-in ICP DAS Cyber-Ring technique that enable multiple switches to be placed into a redundant ring. The switch detects and recovers from a fiber or copper link failure within approximately 50ms – for the majority of applications a seamless process. Modbus/TCP, Modbus/RTU and OPC supported, SCADA application can monitor status of Ethernet and fiber port with Modbus or OPC protocol.

MSM-508FCS provides two power inputs that can be connected simultaneously to live DC power sources. If one of the power inputs fails, the other live source acts as a backup to automatically support the MSM-508FCS's power needs. And, the relay output facility can deliver warning signal while dual power or network link failure.

Features:

Automatic MDI / MDI-X crossover for plug-and-play Each port supports both 10/100 Mbps speed auto negotiation Store-and-forward architecture Full duplex IEEE 802.3x and half duplex backpressure flow control 3.2Gbps high performance memory bandwidth Frame buffer memory : 1 Mbit Integrated look-up engine with dedicated 2 K unicast MAC addresses. Redundant Power Inputs +12 ~ +48 VDC Power failure alarm by relay output Supports operating temperatures from -40°C ~ +75°C DIN rail mount and Screw hole for wall mounting kit.

Product specification
Technology
Standards	IEEE 802.3, IEEE 802.3u, IEEE802.3x
Processing Type	Store and forward wire speed switching - no delays
MAC addresses supported	2K
Memory Bandwidth	3.2 Gbps
Flow Control	IEEE802.3x flow control, back pressure flow control
Redundant strategy	STP, Ring(ICP DAS)
Protocol	VLAN, QoS, Port Trunk, SMTP, TELNET, SNMP
Interface
RJ45 port	10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDIX connection
Fiber Optics Port	100 Base-FX(Multi-mode SC connector)
LED Indicators	10/100M, Link/Act/Backup, Full duplex/Half duplex(Fiber Port)
Ethernet Isolation	1500 Vrms 1 minute
Frame Ground for EMS Protection	Yes
Ethernet Transmission distance	Ethernet : 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm Fast Ethernet : 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm
Fiber Optic Transmission distance	Multi-mode fiber cables:8.3/125, 8.7/125, 9/125 or 10/125 m Distance : 15 km, (9/125 m recommended) for full duplex Wavelength : 1300 or 1310nm Min. TX Output: -15 dBm Min. TX Output: -15 dBm Max. TX Output: -8 dBm RX Sensitivity: Max. -34 dBm
Ethernet Cables	10 Base-T (Cat.3, 4, 5 UTP cable 100m Max.) 100 Base-TX (Cat.5 UTP cable 100m Max.)
Management interface	Console, DIP/Rotary Switch
Alarm output	Relay
Power
Input Voltage Range	+12 ~ +48 VDC (Non-isolation redundant input)
Power Input isolation	1KV
Alarm Contact	One relay output with current carrying capacity of 2A @ 30 VDC
Power consumption	0.3 A@24 VDC (+/- 5%, arrowed)
Protection	Power reverse polarity protection
Frame Ground for EMS Protection	Yes
Connection	7-Pin Removable Terminal Block
Mechanical
Case	Plastic
Flammability	UL 94V-0
Dimensions	64mm x 110mm x 98mm (W x H x D)
Installation	DIN rail mount Wall Mounting
Environmental
Operating temperature	-40 C ~ +75 C
Storage Temperature	-40 C ~ +85 C
Relative Humidity	10% to 90% non-condensing
Include cable
Include cable	CA-090510 x 1

Product features:
Industrial Ethernet Devices
Industrial Ethernet
Manufacturer	ICPDAS
Interfaces	Ethernet Optic fiber
Ethernet device type	Switch Managed switch
Network interfaces	10/100 TX 100Mb FX
Network connector	SC
Number of network ports	Up to 8
Switch features	Single mode
Mount type	DIN rail mounting
