Availability:  product is availablePrice: Inquiries: Bonus:

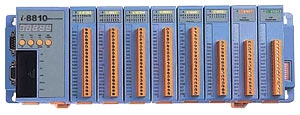

I-8810PC AMD188ES 40MHz Industrial Controller, 256kb Flash, 128kb SRAM, 1x RS232, 1x RS485, 1x RS232/485, 7-Segment Display, Mini OS7, 8x Expansion Slots, WT-25+75, i/o
ICPDAS
The I-8410 and I-8810 are embedded serial I/O units using DCON Protocol Firmware.ICPDAS provides various I/O modules, such as analog input/output, digital input/output and counter/frequcncy modules, which can be used in remote data acquisition and control applications for environment monitoring, power management and factory automation, etc .
The CPU is a 8-bit 80188 (40MHz). Apart from the original functions (input, output, power on value, safe value, high limit value, low limit value) of the I/O module, the firmware provides additional functions to allow I/O modules in different slots to be combined together. For example, if the channel value of an AI module is above a predefined high limit value, or below a predefined low limit value, the information can be immediately passed to another DO module to trigger alarm or light. Various software development kits (SDK) and demos are provided, such as DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc. The I/O modules can be easily added to the I-8410/I-8810 and can be quickly integrated into an existing system.
