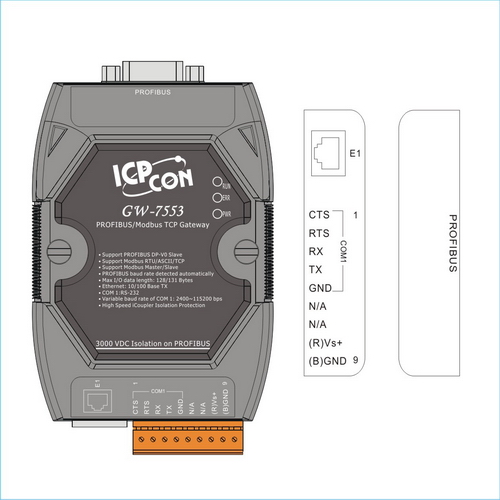

GW-7553

PROFIBUS/Modbus TCP Gateway (RoHS), 10/100 Base-TX, 80MHz CPU, RS-232

ICPDAS

Products description
Technical parameters
Product features

The GW-7553 Gateway is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access the Modbus TCP devices. These Modbus devices may be a PLC, a sensor, the ICPDAS I-8KE4-MTCP module and so forth. In addition, we also provide the utility software for users to configure the GW-7553. By using this module, users can put their Modbus TCP devices into PROFIBUS network very easily.

Utility:

Provide GW-7553 safe value setting
Provide GW-7553 network configuration
Display module parameters of the GW-7553
Show module address configuration of the GW-7553

Products description
Technical parameters
Product features

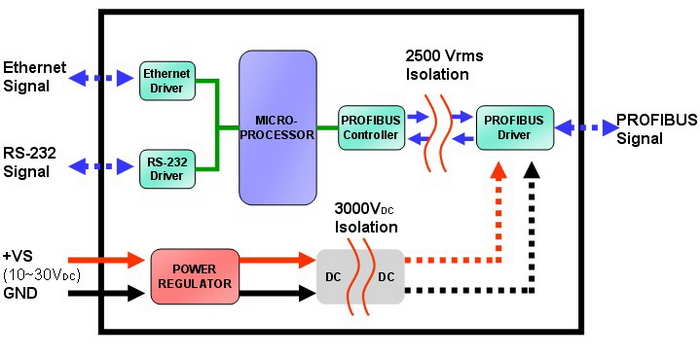

Specyfication
CPU
CPU	80186, 80MHz
Flash	512 KB
SRAM	512 KB
EEPROM	16 KB
Watch Dog Timer	CPU Built-in
COM 1	RS-232
Baud Rate	Up to 115.2 kbps
Ethernet	10/100Base-TX (Auto-negotiating, Auto_MDIX, LED indicator)
PROFIBUS Interface	9-pin D-Sub(Female)
PROFIBUS Controller	Profichip VPC3+C
PROFIBUS Transceiver	ADI ADM2486 iCoupler Isolated Transceiver
Transmission Rate	Up to 12 Mbps
Power Requirement	10V ~ 30 VDC
Power Consumption	2.5 W
Operating Temp.	-25 ~ +75C
Storage Temp.	-30 ~ +85C
Humidity	5 ~ 95% RH
Dimensions	72 mm x 33 mm x 119 mm (W x L x H)
Features
Protocol & Hierarchy	DP-V0 Slave
Supports PROFIBUS Transmission Rate (kbps)	9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
Transmission Rate Setting	detected automatically
Max Input Data Length	244 Bytes
Max Output Data Length	240 Bytes
Address Setting	0~126 set by DIP switch or EEPROM
Supports Modbus Mode	Master/Slave
Supports Modbus Format	RTU/ASCII/TCP
Ethernet	10/100 Base-TX
Supports COM 1 Baudrate (kbps)	2.4, 4.8, 9.6, 19.2, 38.4, 57.6, 115.2
Supports COM 1 Data Format	7/8 data bits, No/Odd/Even parity, 1/2 stop bit
Indicators	PWR, ERR, and RUN LEDs
Network Isolation Protection	2500 Vrms High Speed iCoupler
DC Isolation Protection	3000 VDC on PROFIBUS side
Modules Support
Read Coil Status	Read the ON/OFF status of discrete outputs in the slave
Read Input Status	Read the ON/OFF status of discrete inputs in the slave
Read Holding Registers	Read the binary contents of holding registers in the slave
Read Input Registers	Read the binary contents of input registers in the slave
Force Single Coil	Write a single output to either ON or OFF in the slave
Preset Single Register	Write an integer value into a single register in the slave
Force Multi. Coils	Write each coil in the sequence of coils to either ON or OFF in the slave
Preset Multi. Registers	Write a block of contiguous registers in the slave
