GOT-5571T

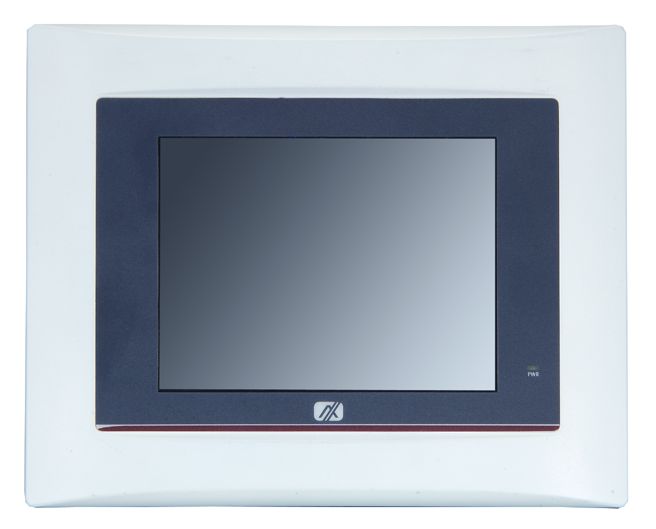

AXIOMTEK's GOT-5571TL-621 fanless touch panel computer features a 5.7" high brightness (500 nits) VGA LCD with a resolution of 640 x 480 pixels. Without a fan, the GOT-5571TL-621 adopts an ultra low power AMD LX800 500MHz processor and NEMA4/IP65 compliant front bezel. Sized only 208.5 x 59.5 x 167.3 (mm), the GOT-5571TL-621 provides a PC/104 expansion slot and a MiniPCI slot, and is also equipped with an easy-to-plug CompactFlash™ card for storage capability. Moreover, it supports various operating systems of WindowsŸ XP, XPE, and CE. This fanless touch panel computer is an ideal for space-limited applications in factory automation, machine maker operating systems, testing equipment, process monitoring, building automation, and more.

a

Features:

5.7 VGA (640 x 480) TFT LCD Fanless cooling system with AMD Geode™ LX800 500 MHz processor Supports WLAN antenna (optional) Easy for expansion: PC/104, MiniPCI Embedded OS: WindowsŸ CE.NET, XP Embedded supported

Product specification
Front Bezel	IP65, NEMA 4 rugged protection, plastic front bezel
LCD Panel
Display Type	5.7" VGA TFT LCD
Brightness (cd/m2)	500 nits
Resolution	640 x 480
View Angle (H/V)	140°/100°
Main System
CPU	AMD Geode LX800 500 MHz
Chipset	AMD LX + CS5536AD
System Memory	1 x 200-pin DDR SO-DIMM max.up to 1 GB
BIOS	Award 4Mbit with RPL/PEX LAN boot ROM, Smartview and customer CMOS backup
Storage	1 x CompactFlash
Watchdog Timer	255 levels, 0~255 sec.
Onboard Graphics	Integrated in AMD LX chipset

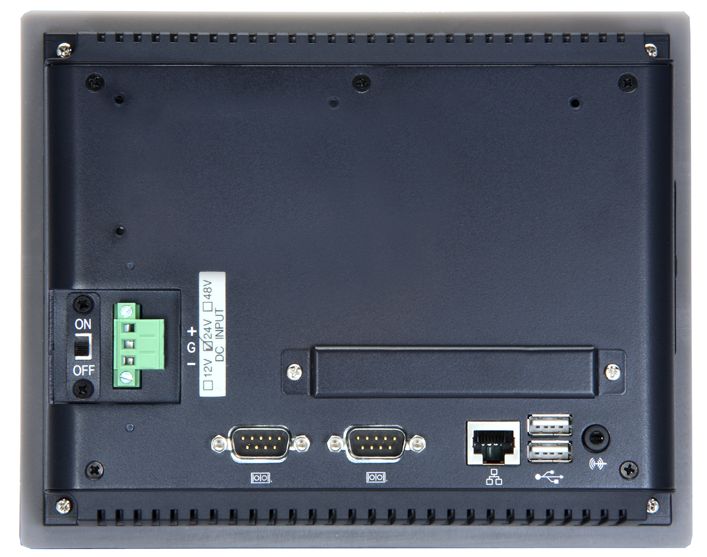

I/O Connector	1 x RS-232 (COM 2) 1x RS-232/422/485 (COM 1) 2x USB 2.0 1 x 10/100Mbps Ethernet 1 x Audio (Line-out)
Expansion	1 x MiniPCI slot
Interface	1 x PC/104 slot
Touchscreen	Resistive type
Power Supply	24Vdc 55W, with fuse over-current protection
Dimensions	208.5 mm (8.21") (W) x 59.5 mm (2.34") (D) x 167.3 mm (6.59") (H)
Packing Dimensions	340 mm (13.39") (W) x 100 mm (3.94") (D) x 230 mm (9.06") (H)
Weight (net/gross)	1.3 kg (2.87 lb)/2 kg (4.4 lb)
Environment	Operating temperature: 0C ~ +50°C (32°F ~ 122°F) (in airflow condition) 0C ~ +45°C (32°F ~ 113°F) Relative humidity: 10% ~ 95% @40°C non-condensing Operation vibration: 2G, 5~500Hz, random for CompactFlash
Certification	CE

Product features:
Computer, PLC
LCD, PanelPC
Manufacturer	Axiomtek
Screen size	5" - 8"
Interfaces	USB Ethernet
Graphics interfaces	VGA
Expansions	mini-PCI
Storage	CompactFlash
Other	Audio Fanless
Panel type	Panel PC
Device features	Programmable
Panel type	Touchable
Serial ports	RS-232 RS-422 RS-485
Processor speed	500MHz - 1,5GHz
Expansions	PC-104
Network interfaces	10/100 TX
Screen size	5" - 8"
Processor type	AMD
Switch features	Non-fiber
Format	PC/104
Panel type	Touchable
Converter type	Programmable converter
USB ports	USB x2
