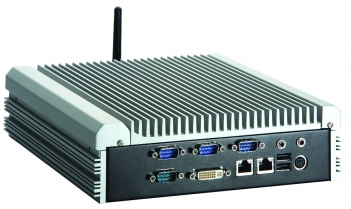

eBOX310-830-FL-CANBUS-RC-DC

The eBOX310-830-FL compact in-vehicle box computer is for in-vehicle use. To further ensure its implementation for in-vehicle applications, the fanless eBOX310-830-FL is certified with E-Mark Certification (E-13) and ISO-7637 power standard, which certifies it compatible with other vehicle components and meets tier-1 car maker's requirement. In addition, the design of power module incorporates a MCU microprocessor for power control. The unit is powered by an IntelŸ Core™2 Duo processor with the IntelŸ 945GME and ICH7M chipsets. One 200-pin DIMM socket supports up to 2GB DDR2 400/533 DRAM for high memory bandwidth. The eBOX310-830-FL with anti-vibration up to 2Grms (with HDD) and excellent thermal resistance is an all-in-one in-vehicle computer for use in any car, truck, bus or even for maritime applications.

Features:

Socket M for IntelŸ Core™2 Duo/ Core™ Duo/ Core™ Solo/ CeleronŸ M up to 2.33 GHz IntelŸ 945GME + ICH7M chipset ISO-7637 Pulse1/2a/3a/3b/4/5a vehicle standard Wide-range vehicle power supply with ignition control Fanless operation design with full feature I/O High performance DDR2 SODIMM max. up to 2 GB Supports 2 PCI Express Mini Cards One 2.5" SATA drive bay and CompanctFlash™ slot Optional CAN bus support

Product specification
Standard Color	Silver-Black
Construction	Aluminum extrusion and heavy-duty steel, IP40
CPU	Socket M for Intel- Core2 Duo/ Core Duo/ Core Solo/ Celeron- M up to 2.33 GHz processor
System Memory	1 x 200-pin DDR2 SO-DIMM max. up to 2 GB
Chipset	Intel- 945GME + ICH7M
BIOS	Phoenix-Award 4M Git with RPL/PXE boot ROM
System I/O Outlet	2 x RS-232 (COM 2/3) 1 x RS-232/422/485 (COM 1) 1 x DVI-I for DVI and CRT output 1 x Audio (Mic-in/Line-out) 1x PS/2 keyboard/mouse 2x 10/100/1000Mbps Ethernet 2x USB 2.0 3x SMA type connector opening 1 x Vc: power input connector
Watchdog Timer	255 levels, 1 ~ 255 sec.
Storage	1 x 2.5" SATA HDD drive bay 1 x CompactFlash
Expansion Interface	2 x PCI Express Mini Card
System Indicator	1 x green LED for system power-on 1 x orange LED for HDD active 1 x green LED for Power status
Power Supply	DC12V mode: Operating voltage: DC9 ~ 16V Start voltage: DC13V or higher DC24V mode: Operating voltage: DC18 ~ 32V Start voltage: DC26V or higher
Operating Temperature	-10C ~ +50C (32F ~ 122F) (with W.T. HDD)
Storage Temperature	-20C ~ +80C (-4F ~ +176F)
Humidity Vibration Endurance	10% ~ 90% , non-condensing 2 Grms with HDD (5 - 500 Hz, X,Y,Z directions)
Dimensions	224.1 mm (8.82") (W) x 250 mm (9.84") (D) x 66.5 mm (2.62") (H)
Weight (net/gross)	3 kg (6.61 lb) /3.8 kg (8.37 lb)
Certification	CE, e13, ISO-7637
EOS Support	XPE, WinCE, Linux

Product features:
Computer, PLC
Manufacturer	Axiomtek
Compatible OS	Linux Windows
Processor type	Intel Intel Core 2 Duo
Interfaces	USB Ethernet CAN PS/2
Graphics interfaces	DVI
Storage	2.5" HDD HDD SATA
GSM Modem	3G/HSPA
Wireless communication	Wi-Fi Bluetooth GSM Modem
Device type	BOX Computer
Serial ports	RS-232 RS-422 RS-485 RS-232 x2
Network interfaces	10/100 TX 1Gb TX
Other	Fanless Box computer
Device features	Embedded
USB ports	USB x2
GPS	GPS
